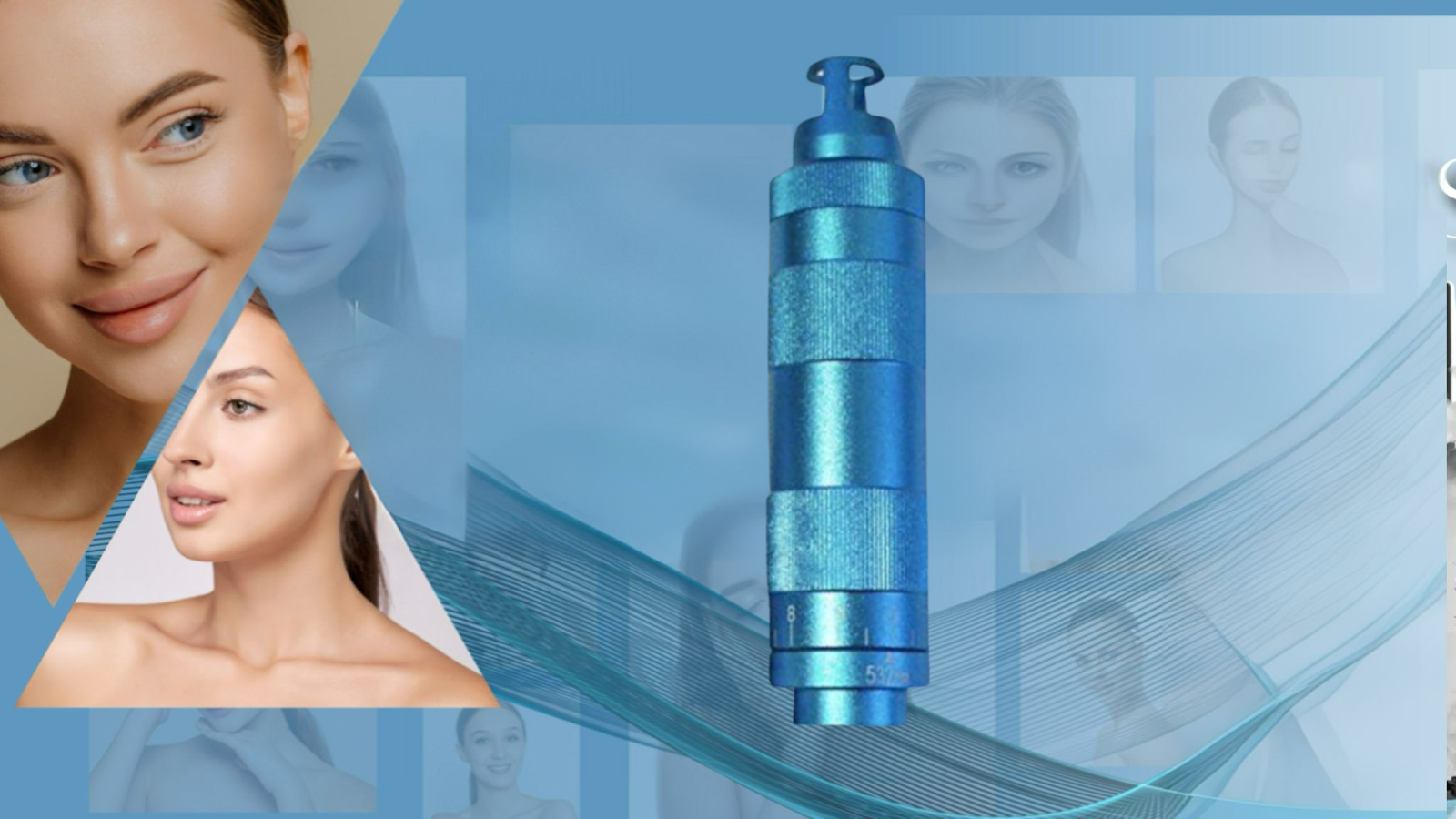

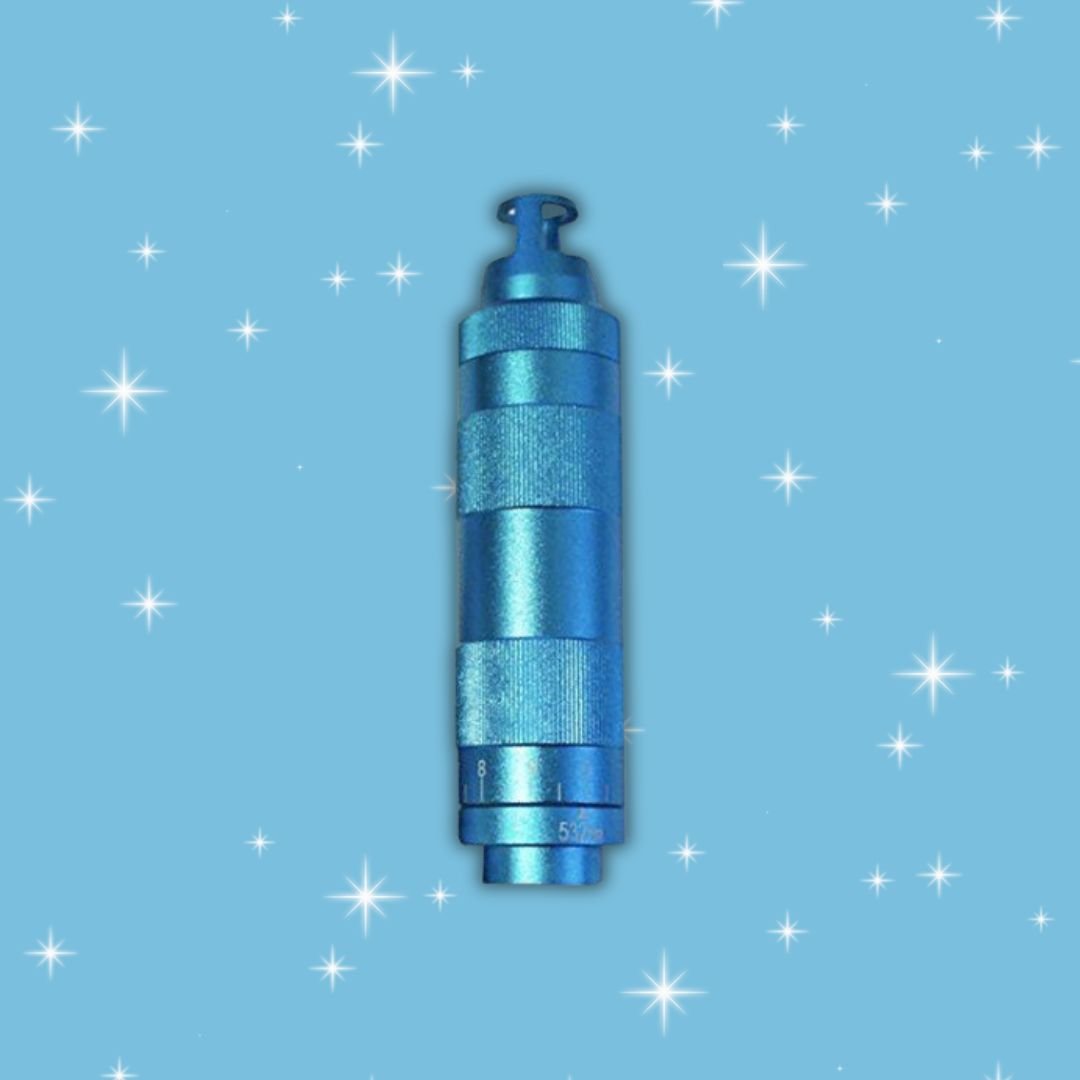

532nm Zoom Lens for Q-Switch Nd:YAG Laser Tattoo Removal
Adjustable Spot Sizes | Precision Targeting | Compatible with 532nm Wavelength
Upgrade your Q-Switch Nd:YAG laser system with this 532nm Magnifying Zoom Lens, specially designed for precision tattoo removal and pigmentation treatments. With adjustable spot sizes from 2mm to 9mm, this professional-grade lens allows you to customise energy delivery for targeted results—ideal for treating coloured inks like red, orange, and yellow, or superficial pigmentation issues.
Why Choose the 532nm Zoom Lens?
✔️ Versatile Spot Size Control: Zoom capability from 2mm to 9mm to accommodate different treatment areas and pigment densities.
✔️ Fluence-Optimised: Maintain consistent fluence (J/cm²) by adjusting energy output according to spot size.
✔️ 532nm Wavelength: Best suited for removing warm-toned tattoo pigments and treating vascular or superficial pigmentation.
✔️ High Precision: Magnification provides better visual control for working on small or detailed areas, including SPMU correction.
✔️ Compatible & Easy to Use: Universal fit for most Q-Switch Nd:YAG handpieces.
How to Use the Zoom Lens
Understanding the relationship between fluence (J/cm²), energy (mJ), and spot size is critical for safe and effective laser delivery.
Formula:
Fluence = Energy (mJ) ÷ Spot Size Area (cm²)
As spot size increases, the laser energy is distributed across a larger area—requiring a higher energy output to maintain the same fluence. For example, doubling the spot size requires a fourfold increase in energy to remain effective.
Recommended Energy Settings
(Capped at 2000mJ for machine compatibility)
| Spot Size (mm) | Recommended Energy (mJ) |
|---|---|
| 2mm | 200mJ |
| 3mm | 400mJ |
| 4mm | 700mJ |
| 5mm | 1000mJ |
| 6mm | 1400mJ |
| 7mm | 1800mJ |
| 8mm | 2000mJ |
| 9mm | 2000mJ (Maxed out) |
⚠️ At 8mm and 9mm, your machine will reach maximum energy output, meaning the fluence will be lower than at smaller spot sizes.
Important Usage Notes
Energy Visibility: Settings above 400mJ may not be visible to the naked eye. The treatment is still effective—even if the beam isn’t visibly strong.
Safety First: Always perform a patch test and adjust energy according to the client’s skin type and treatment goal.
Follow Manufacturer Guidelines for best results and machine longevity.
Product Specifications
Wavelength: 532nm
Spot Size Range: 2mm to 9mm
Material: Medical-grade alloy
Function: Tattoo & pigmentation removal (warm tones)
Compatibility: Universal fit for most Q-Switch Nd:YAG handpieces
Condition: New
Usage: Professional / Clinical only
Perfect For:
Laser tattoo removal (red, orange, yellow pigments)
SPMU/light cosmetic tattoo fading
Superficial pigmentation and vascular lesion treatments
Precision correction of detailed areas
Order your 532nm Zoom Lens today and enhance your tattoo removal treatments with precision, flexibility, and clinical-grade control—only at Skintastic Aesthetics.
