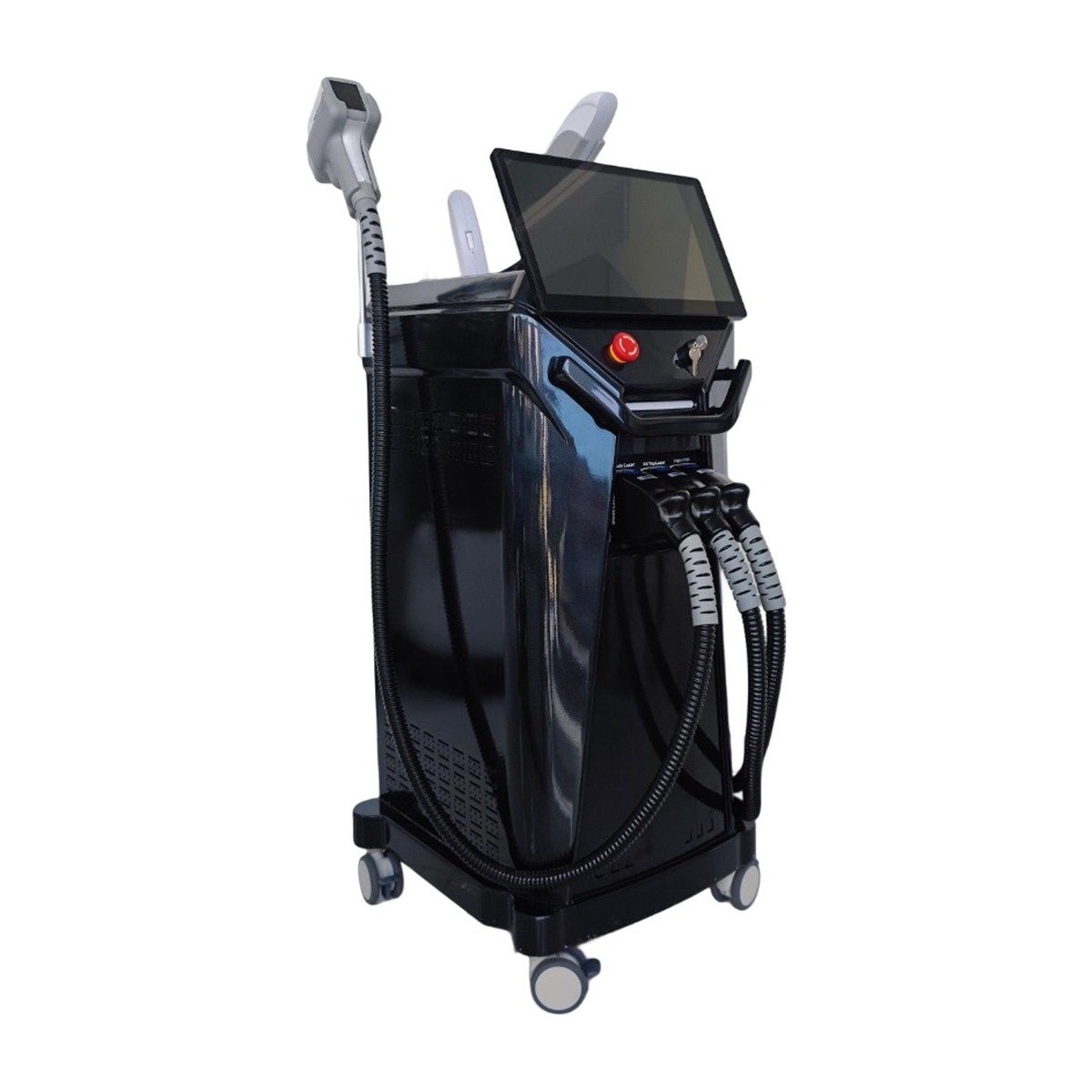

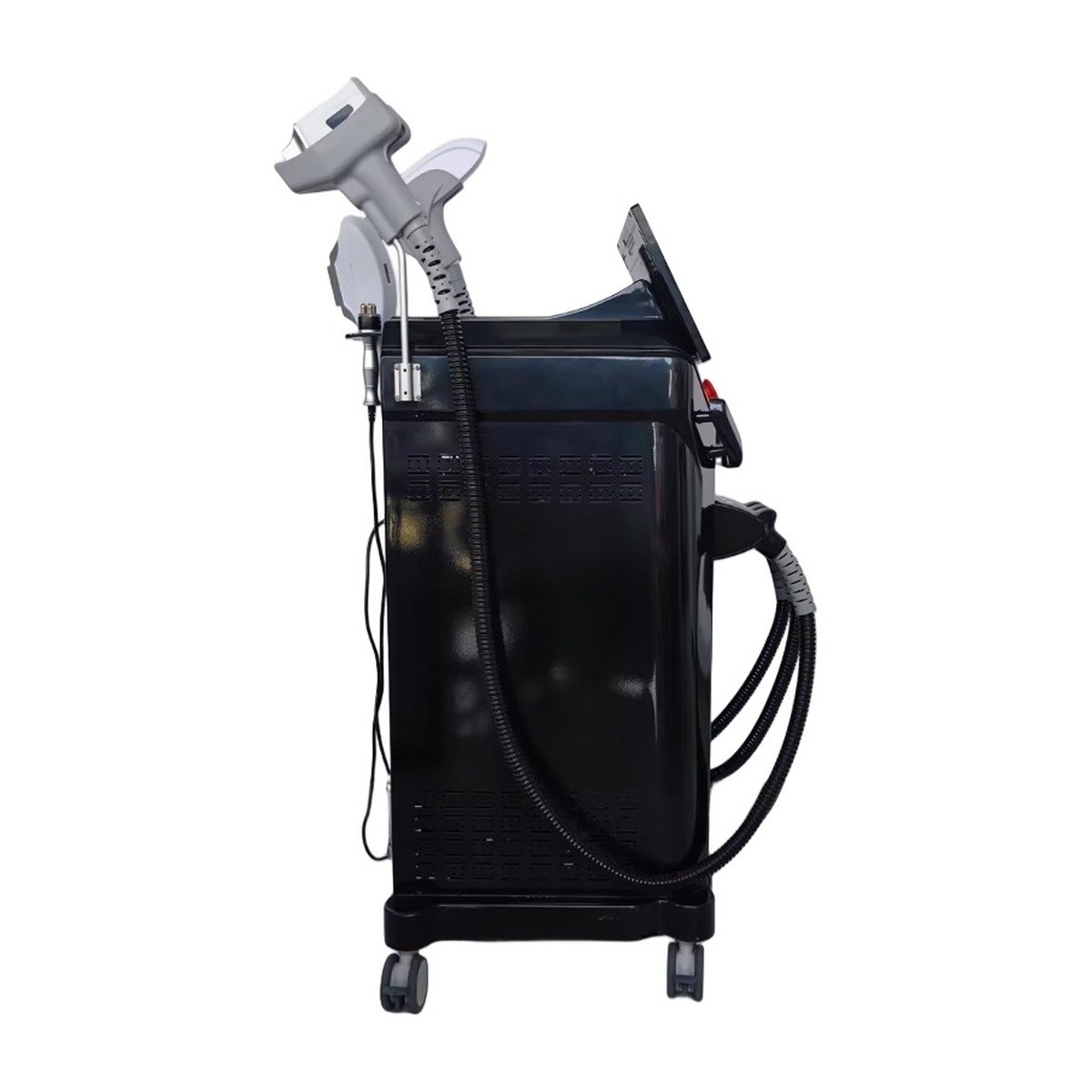

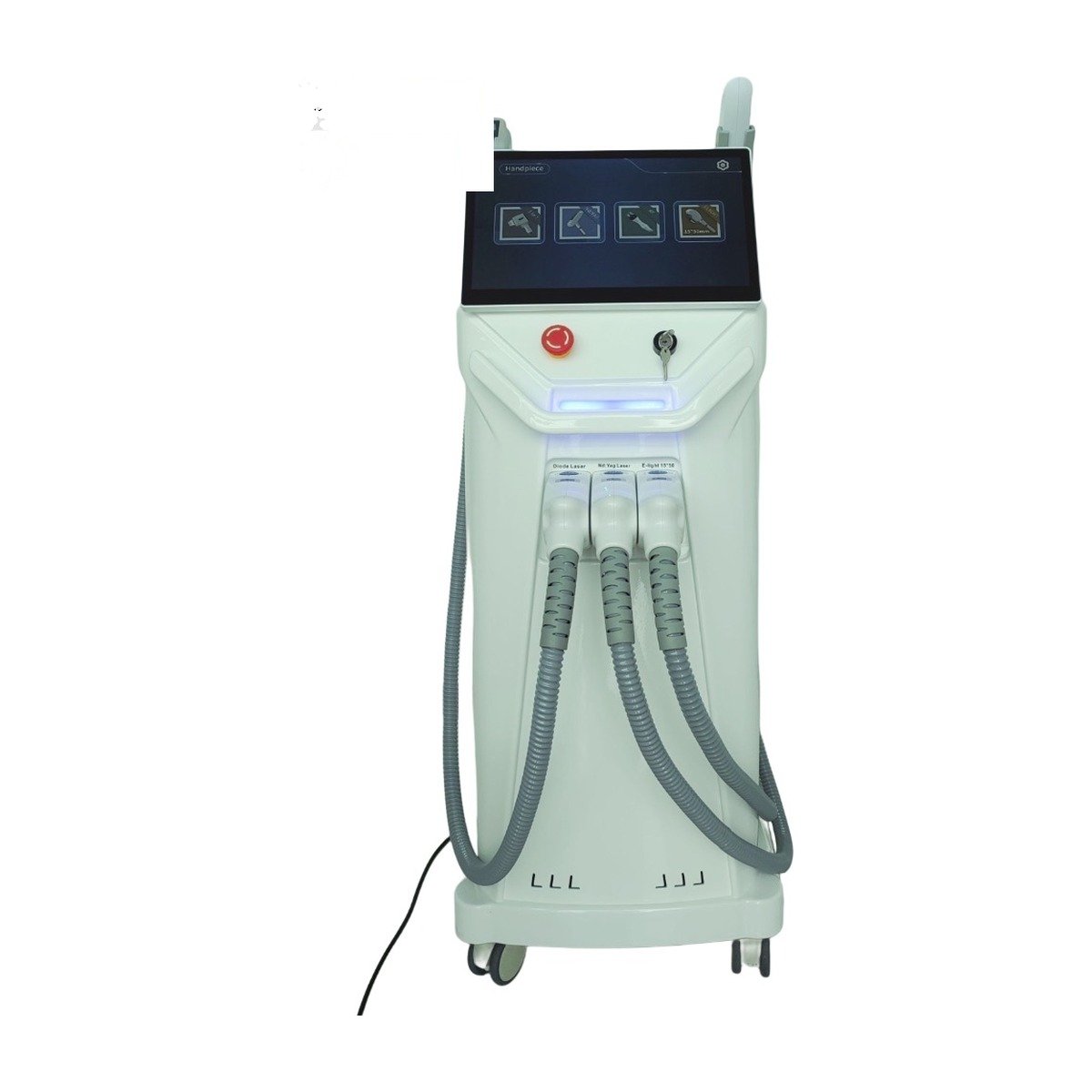

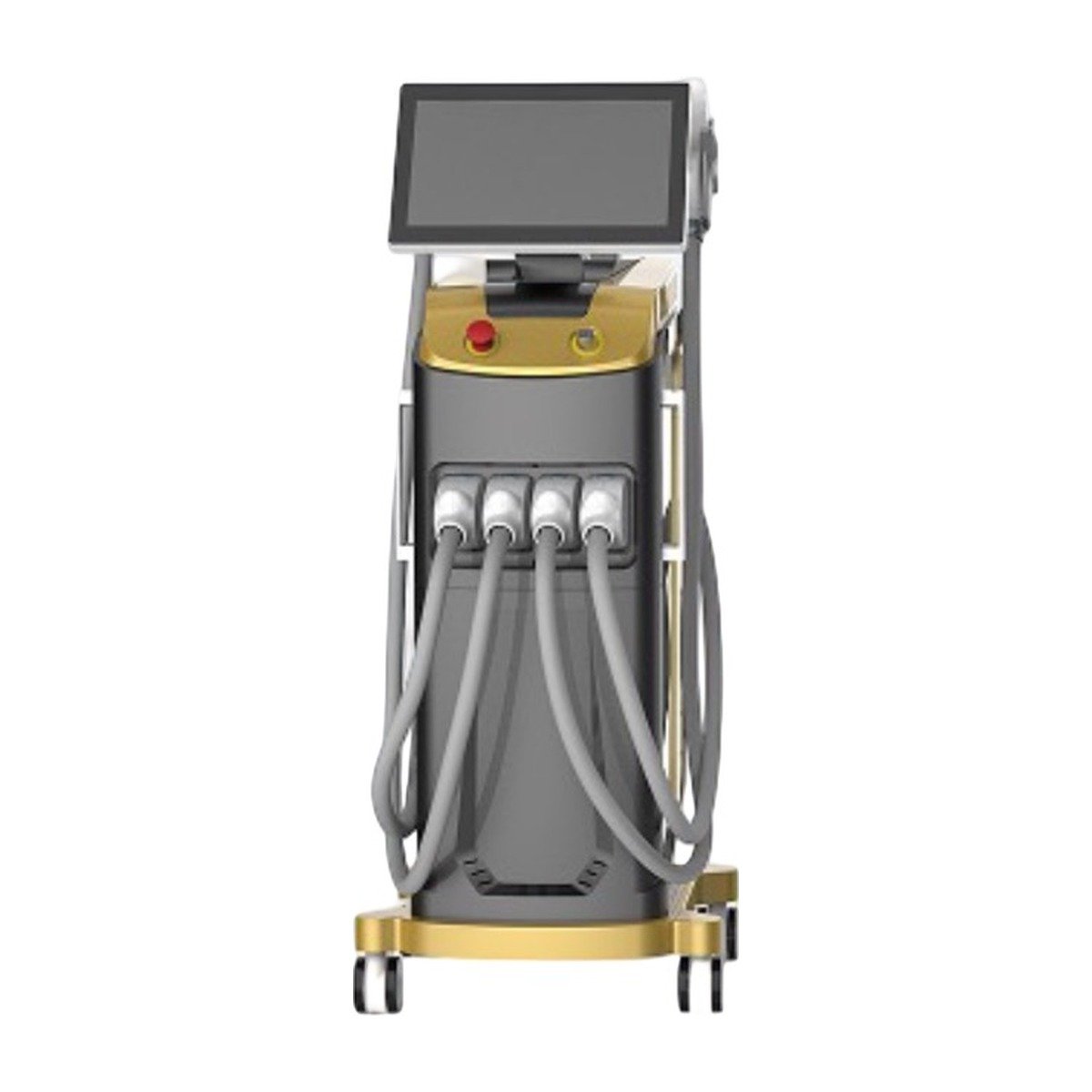

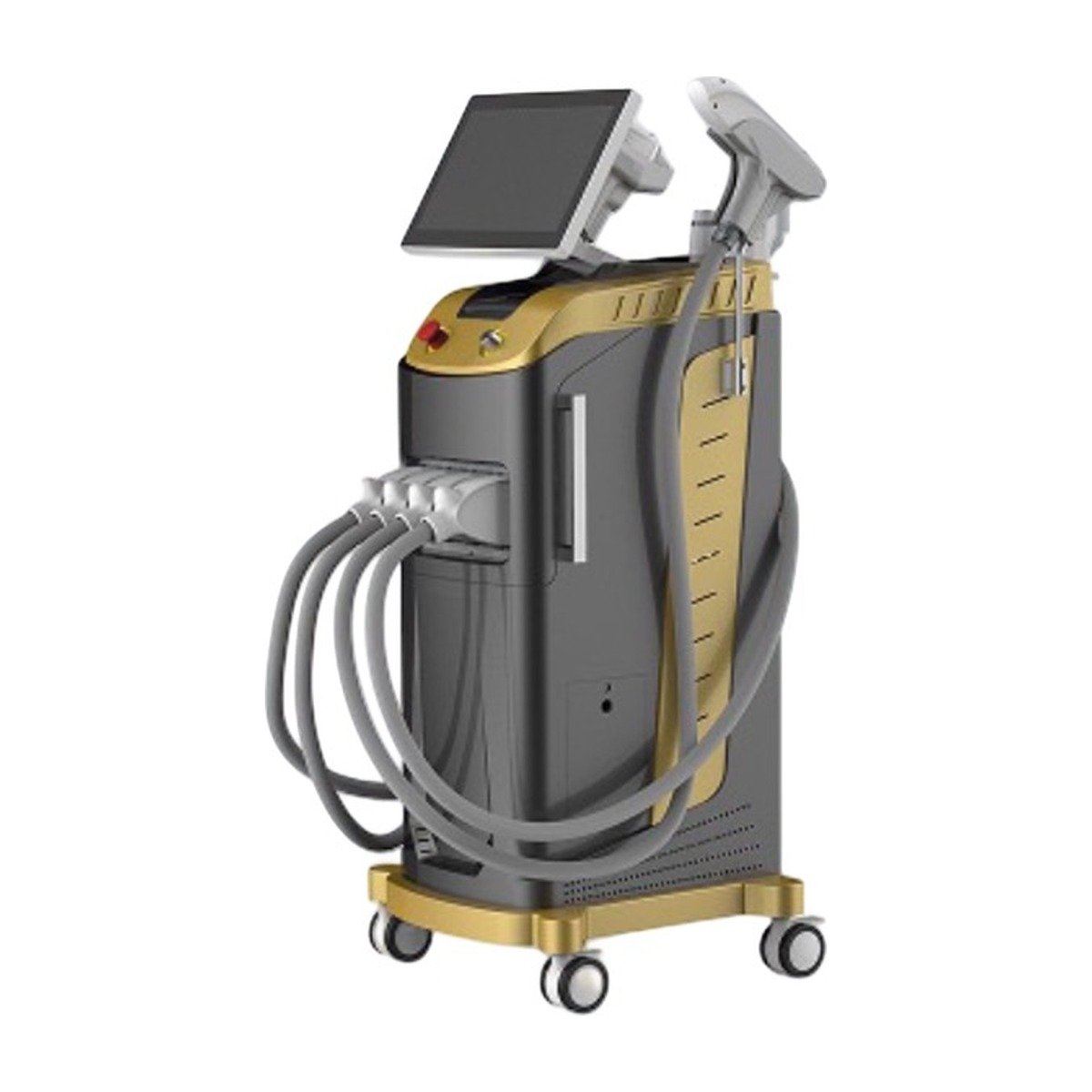

Four technologies in one machine
The DPL4 brings four platforms together in a single device, so one machine covers a full treatment menu without buying, housing and servicing four separate systems.
- Quad wavelength diode. C-MAX handle, up to 2400W, three interchangeable spot sizes and 360 degree contact cooling.

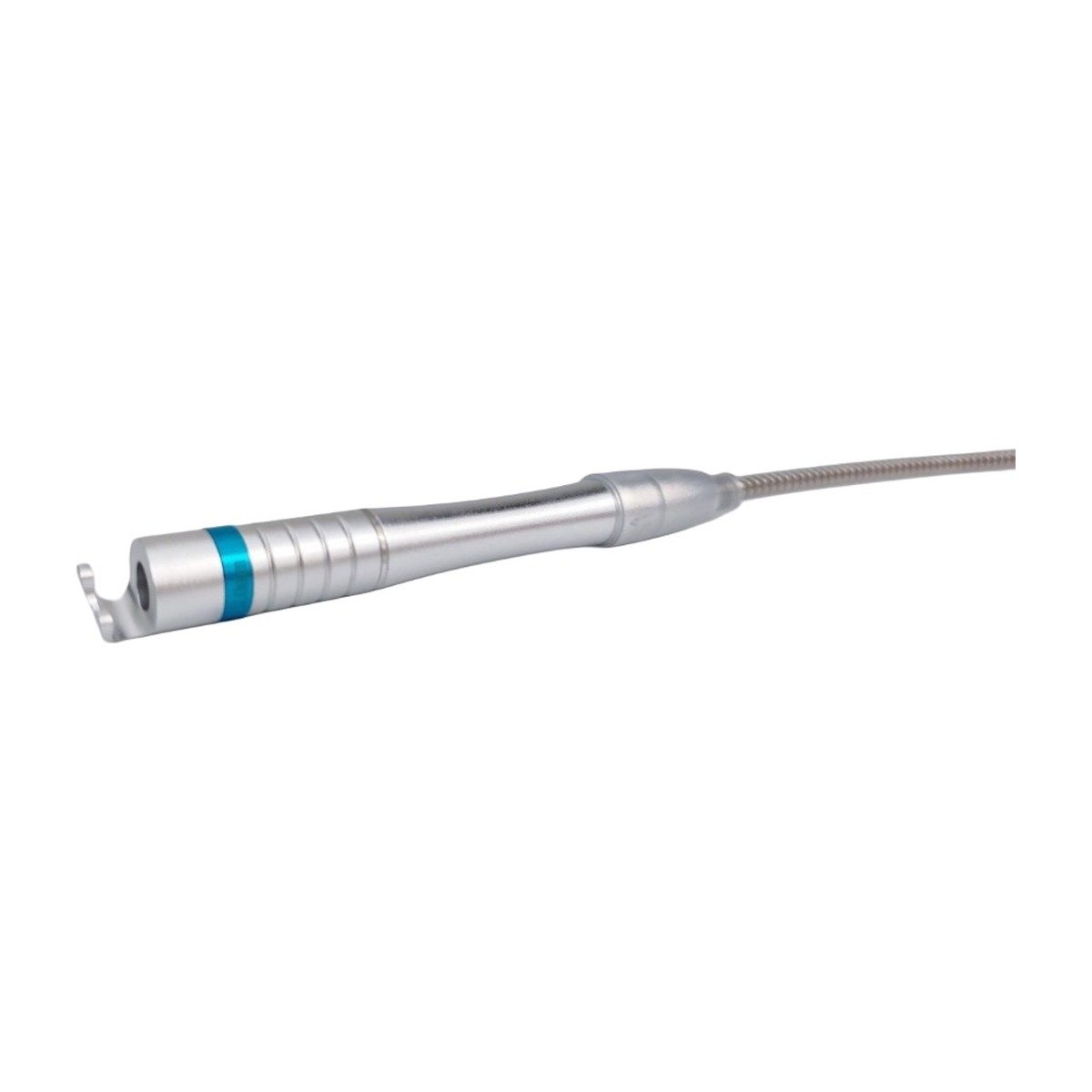

- Q-switched Nd:YAG. 532nm, 1064nm and 1320nm for tattoo removal, pigmentation and carbon peel work.

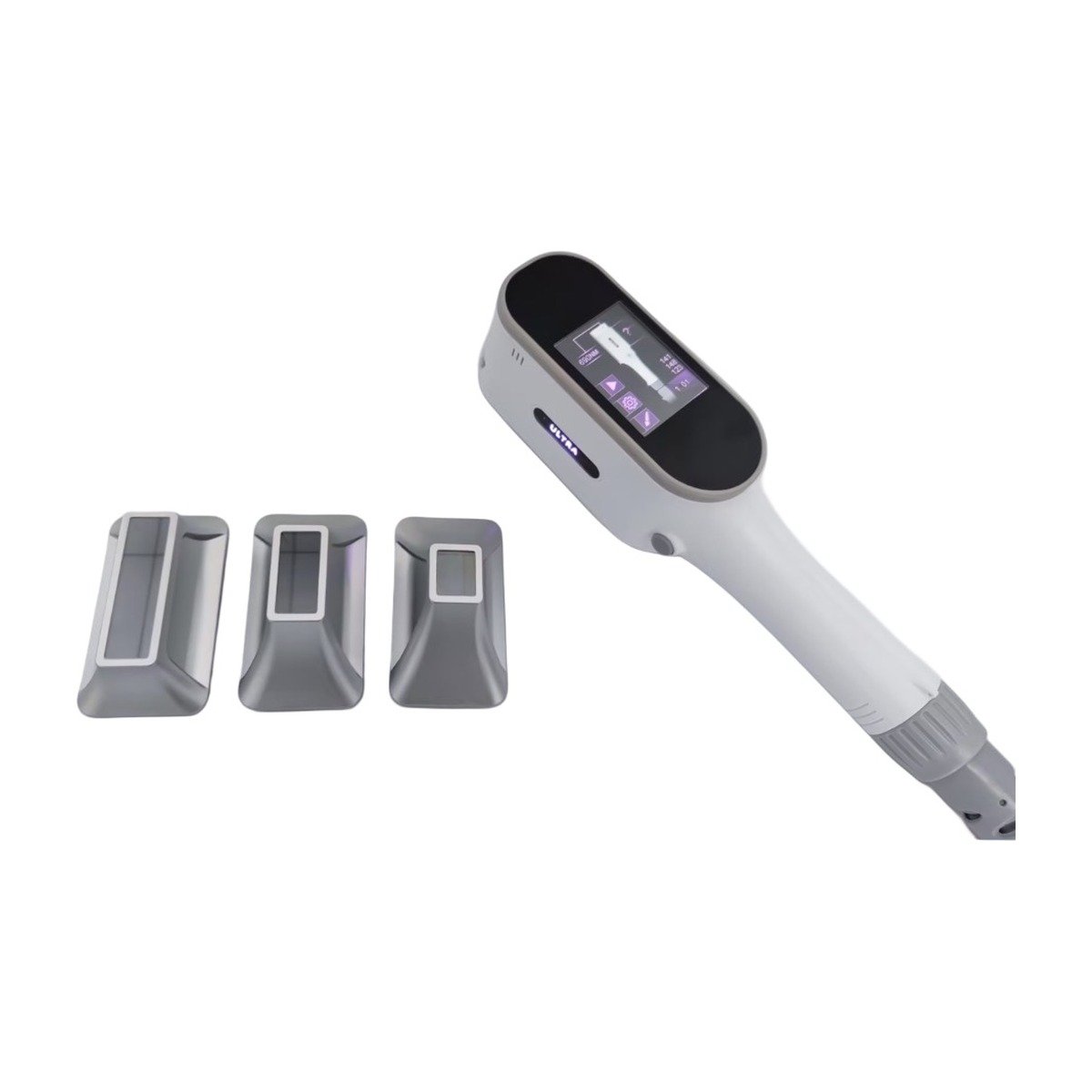

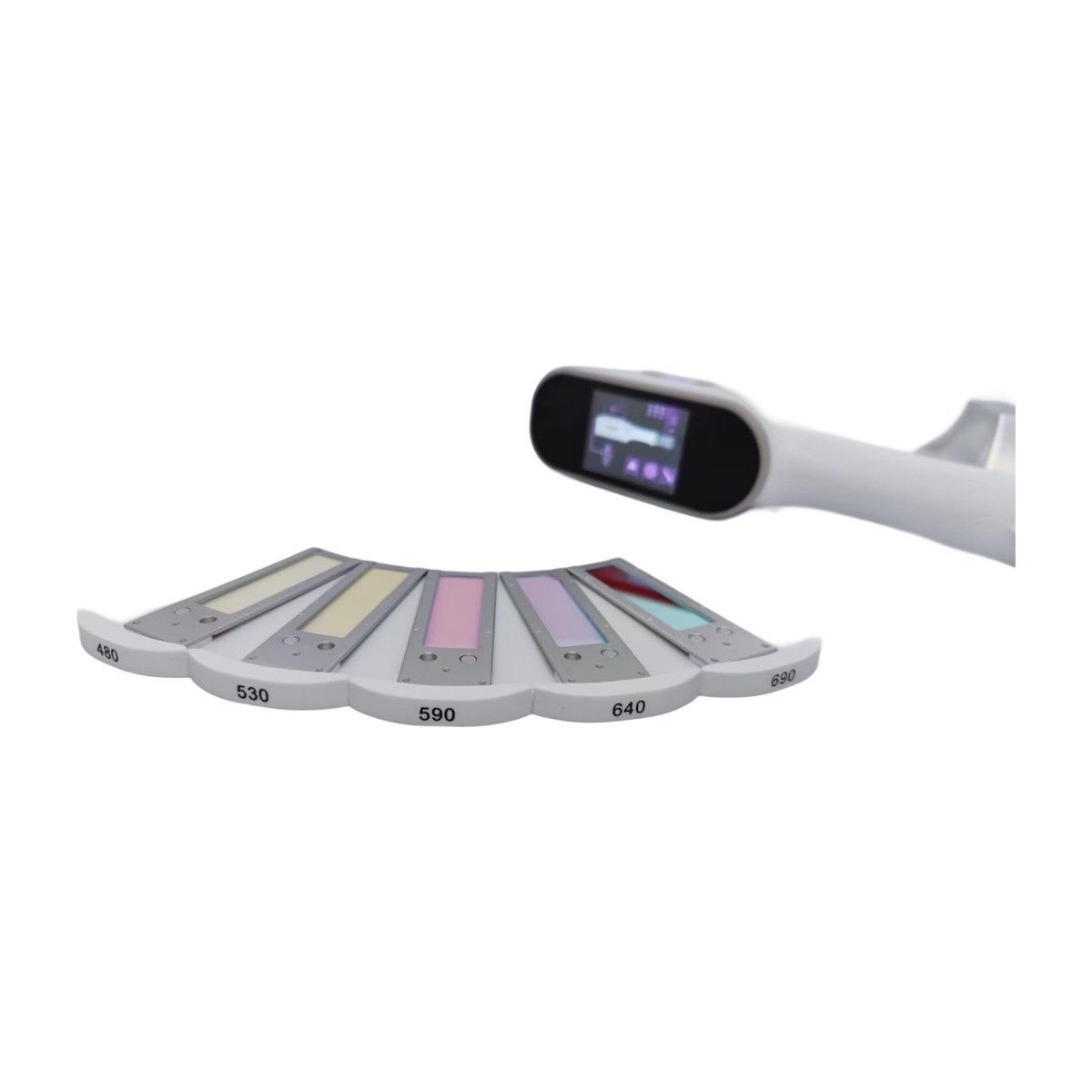

- E-Light IPL and SHR. Five insertable filters and three spot sizes from a single handpiece.
- Tripolar radio frequency. Controlled dermal heating for facial lifting and body contouring.
Treatments it covers
- Quad wavelength hair removal, types I to VI
- Acne and sebaceous regulation
- Photo rejuvenation
- Pigmentation correction
- Facial redness, thread veins and vascular lesions
- Fungal nail treatment
- Tattoo removal, including R20
- SPMU removal
- Carbon peel facials
- Advanced collagen facials
- RF facial lifting and body tightening
- Wrinkle reduction and skin firming
Quad wavelength as one blended output
The diode handpiece emits 755nm, 808nm, 940nm and 1064nm together as a single blended pulse rather than one wavelength at a time. That covers a wider range of hair depths and skin types in one pass, and makes the machine safe to use across the full Fitzpatrick range with the right protocol.

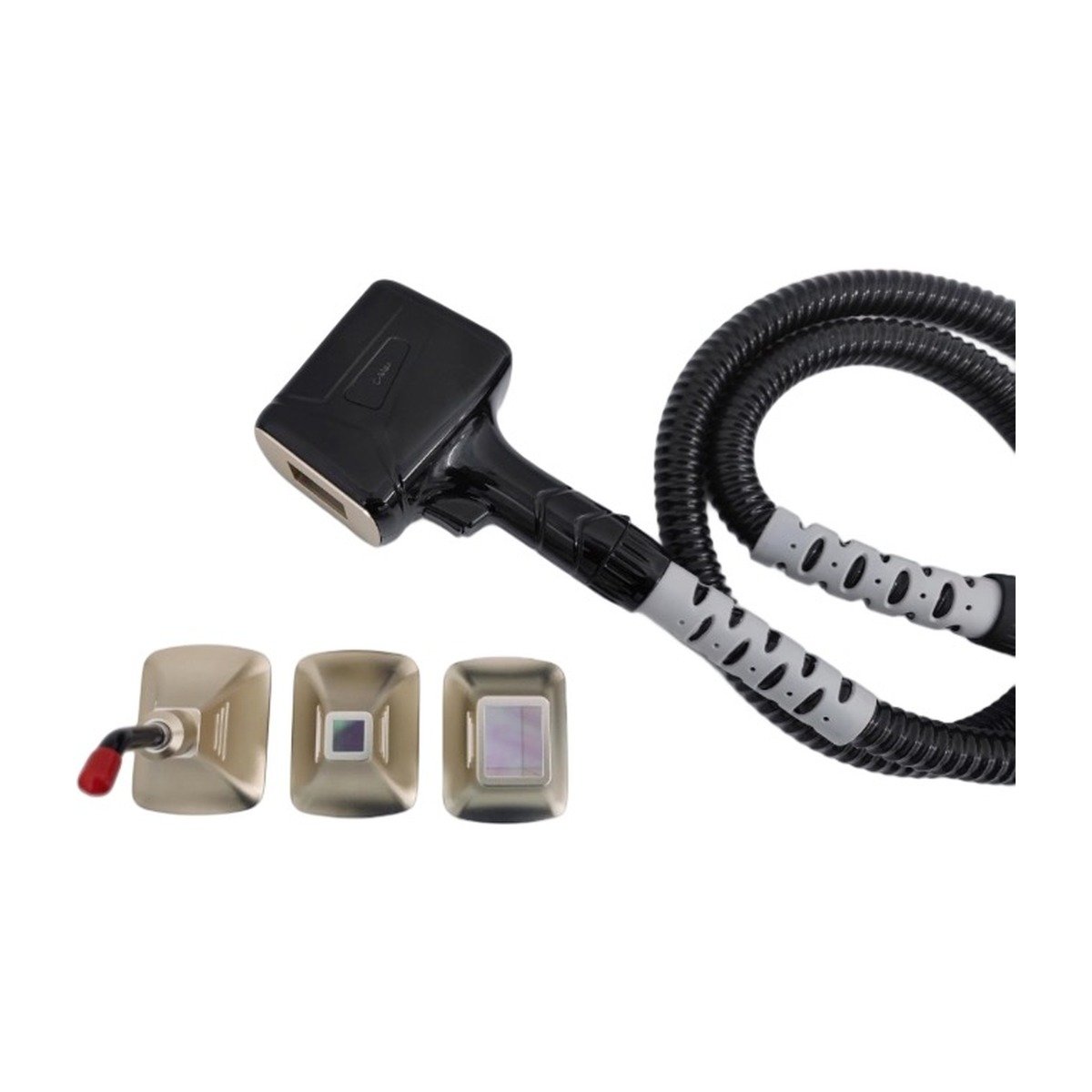

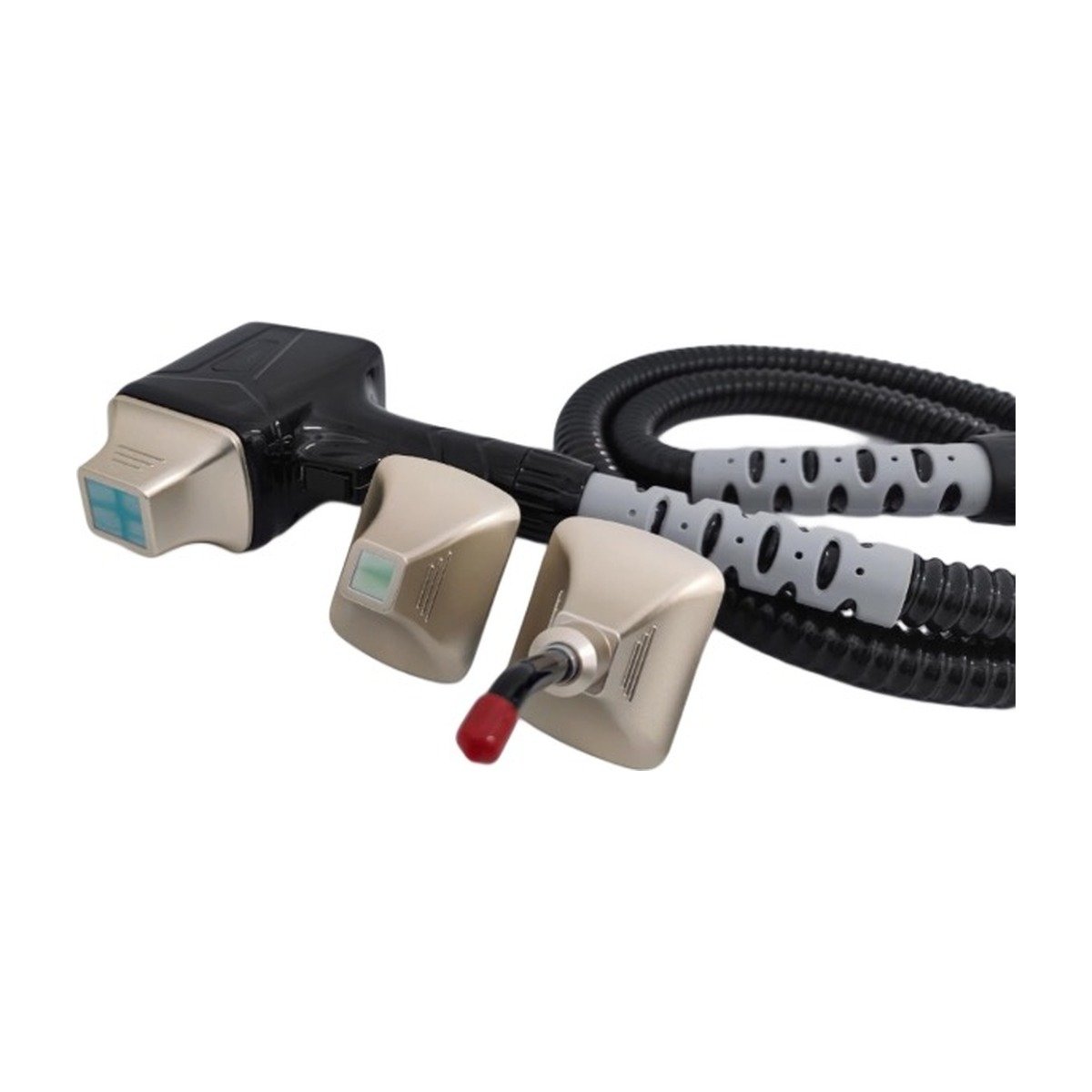

Three spot sizes, recognised automatically

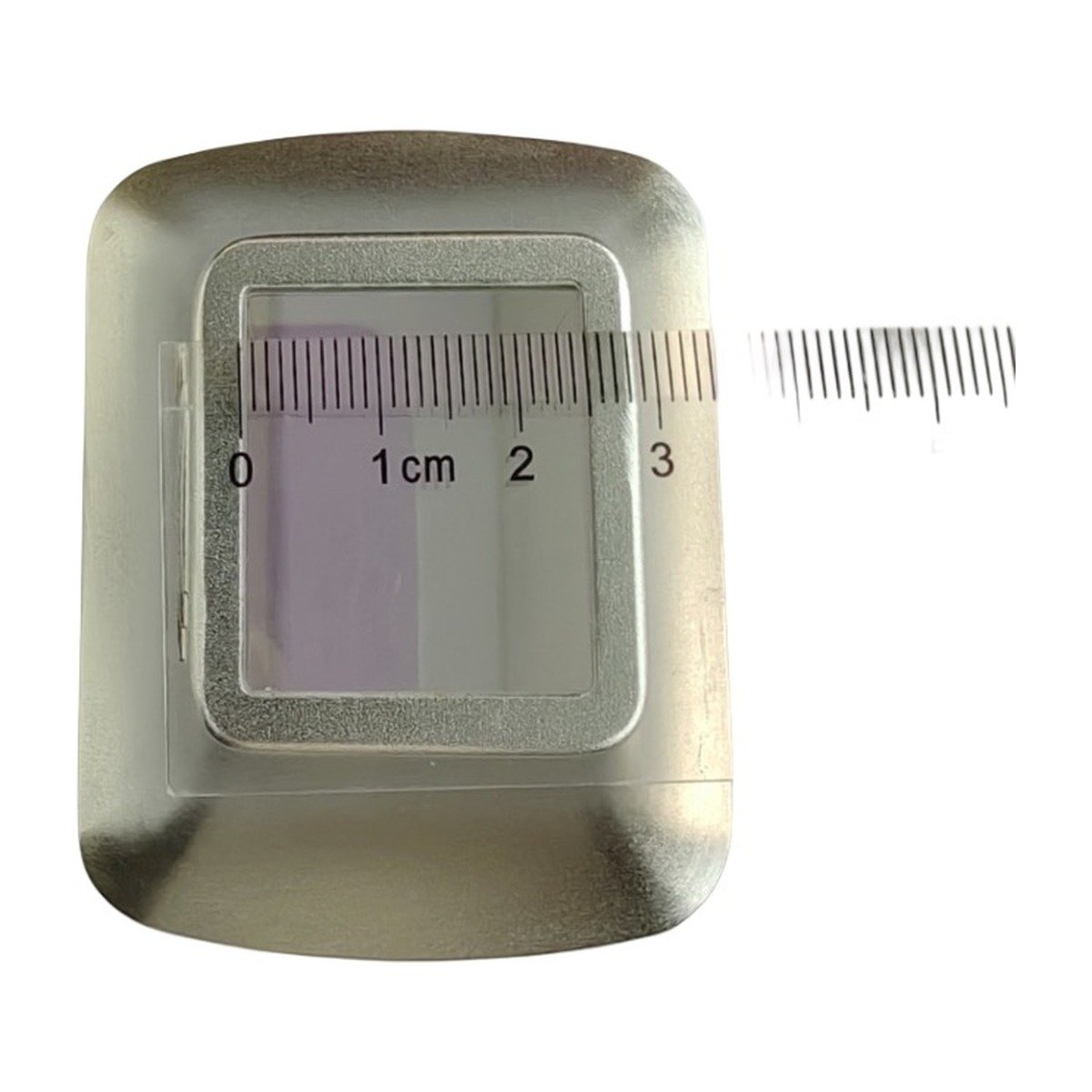

- Body tip. 30 x 25mm for large areas such as backs and legs. Maximum 60 J/cm².
- Facial tip. 15 x 15mm for smaller areas and facial work. Maximum 166 J/cm².
- Mini tip. 8mm diameter for precision work in delicate zones. Maximum 90 J/cm².
Fit any tip to the handle and the machine recognises it and loads the right parameter set.

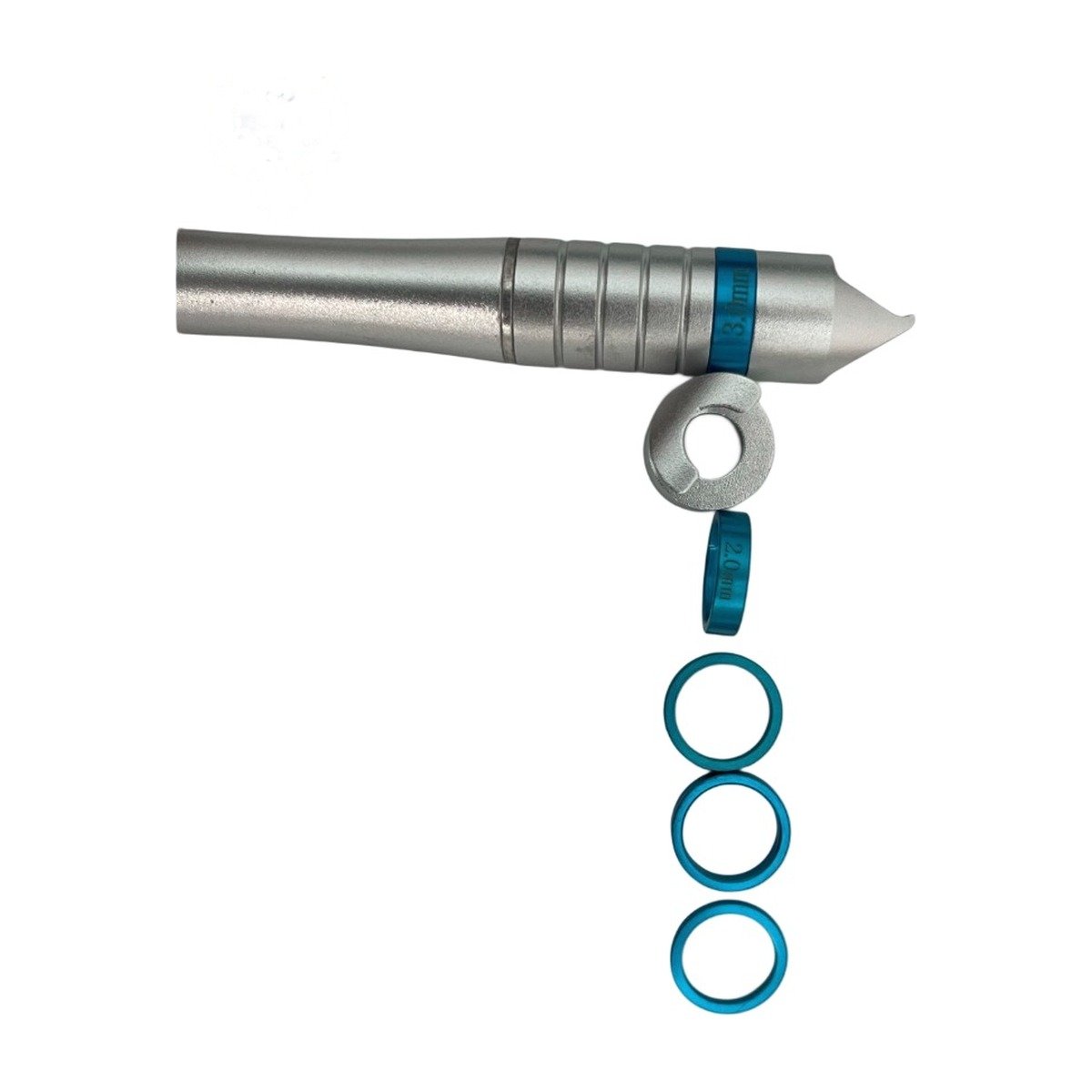

Optional 980nm vascular handpiece
The DPL4 can be built with an additional 980nm vascular handpiece for thread veins, facial telangiectasia, cherry angiomas and other superficial vascular lesions. It needs to be specified when the order is placed, as the handpiece and its driver are fitted during manufacture. DPL4 with the 980nm handpiece is £23,999 plus VAT.
What is included
- Engineer delivery, installation, calibration, on site PAT testing and operational handover
- Twelve months of Laser Protection Adviser support from Dr Godfrey Town
- Laser safety eyewear: EN 166 glasses, CE blackout goggles and LPA approved EN 207 glasses
- Ofqual regulated qualification pathway, subject to entry requirements
- Manufacturer operating training at the Skintastic academy in Southampton
- Two year manufacturer warranty on the machine and electronics, twelve months on handpieces
- Custom shell colour, finish and engraved logo at no extra cost
Regulatory position
MHRA registered medical device. Class 4 laser to BS EN 60825-1. Supplied inside a governance framework aligned with the Health and Safety at Work Act 1974, BS EN 60825 and the Control of Artificial Optical Radiation Regulations 2010.
Purchase routes
- Complete Clinical Package. The machine, standard handpieces and accessories, installation, PAT testing, handover, LPA package, practical training and the applicable qualification pathway.
- Qualified Practitioner Package, 10% off. Where you already hold a regulated Level 3 Anatomy and Physiology and a regulated Level 4 Laser and IPL qualification. Evidence of both is needed before the discount applies.
- Machine only, 20% off. For established clinics and suitably qualified practitioners who need the device alone. Excludes installation, PAT testing, LPA services, training and qualifications.
Prices exclude VAT. Finance is available through authorised partners, subject to status and individual lender approval. Full specification and photographs.
