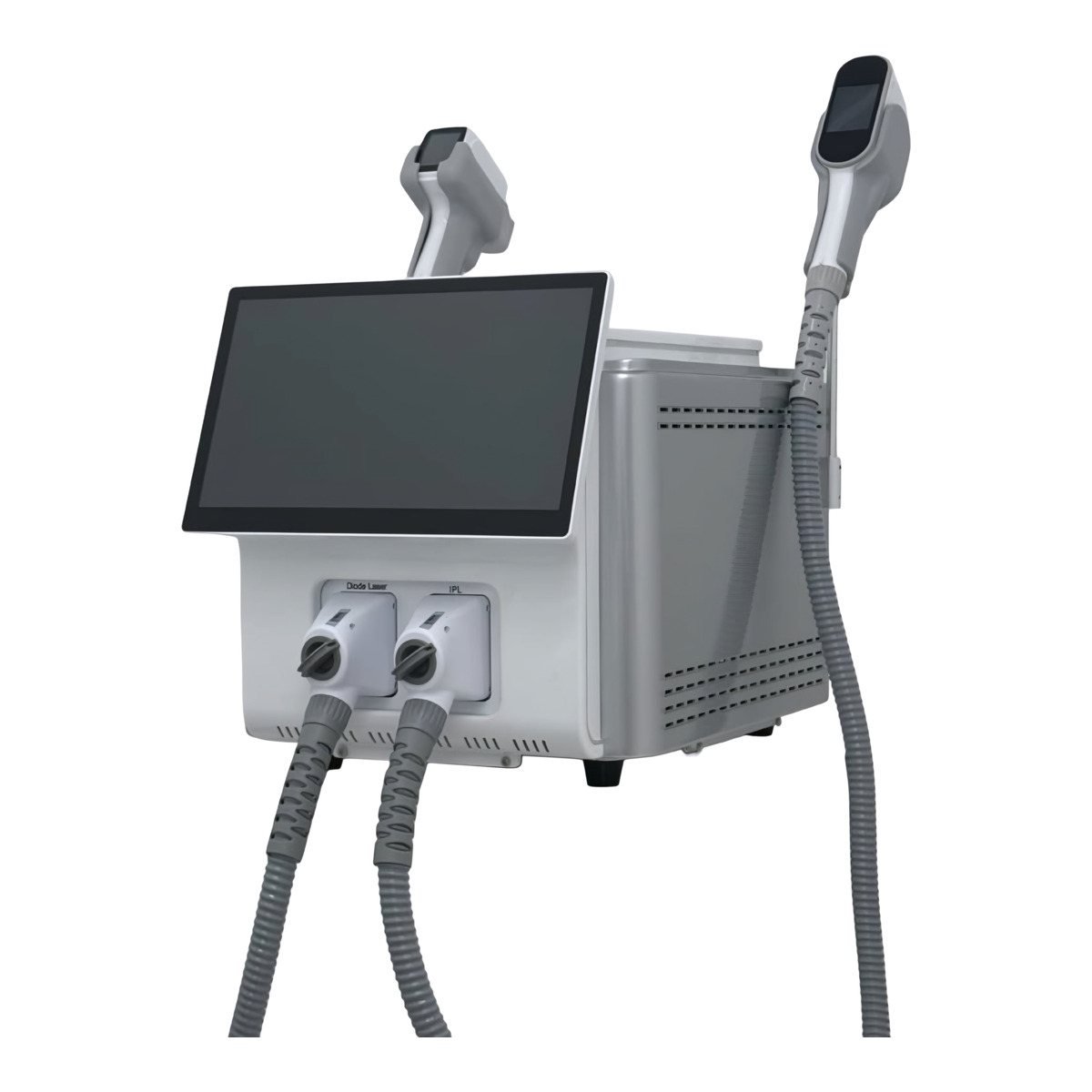

The ADPL-2 puts two full strength emitter technologies in a single 36kg cabinet. The diode side is the 800W C-MAX quad wavelength engine. The intense pulsed light side runs a 1400W UK made xenon lamp with five interchangeable filters. Both halves stand on their own, which is what separates this from a laser with an IPL head bolted on as an afterthought.
Seven treatments
- Diode laser hair removal, 800W quad wavelength
- IPL hair removal
- SHR hair removal
- Acne therapy, 480nm
- Skin rejuvenation, 530nm
- Thread vein reduction, 530nm
- Pigmentation reduction, 590nm
Confirm with your own insurer that the applications you intend to offer are covered before you commit.
The diode side
- Quad wavelength 755 + 808 + 940 + 1064nm, blended output
- 800W laser, 2400W machine, US Coherent or Dilas laser bars, 100 per cent pure AuSn stack
- Bar lifespan up to 20 million shots
- 15 x 15mm treatment spot, 25 x 25mm sapphire cooling head
- 1 to 90 J/cm², 1 to 10Hz, 10 to 200ms
- Three magnetic treatment tips supplied: 15 x 30mm body, 15 x 15mm facial and Ø8mm mini
- Intelligent recognition, the handpiece identifies the fitted tip and loads the pre-set parameters

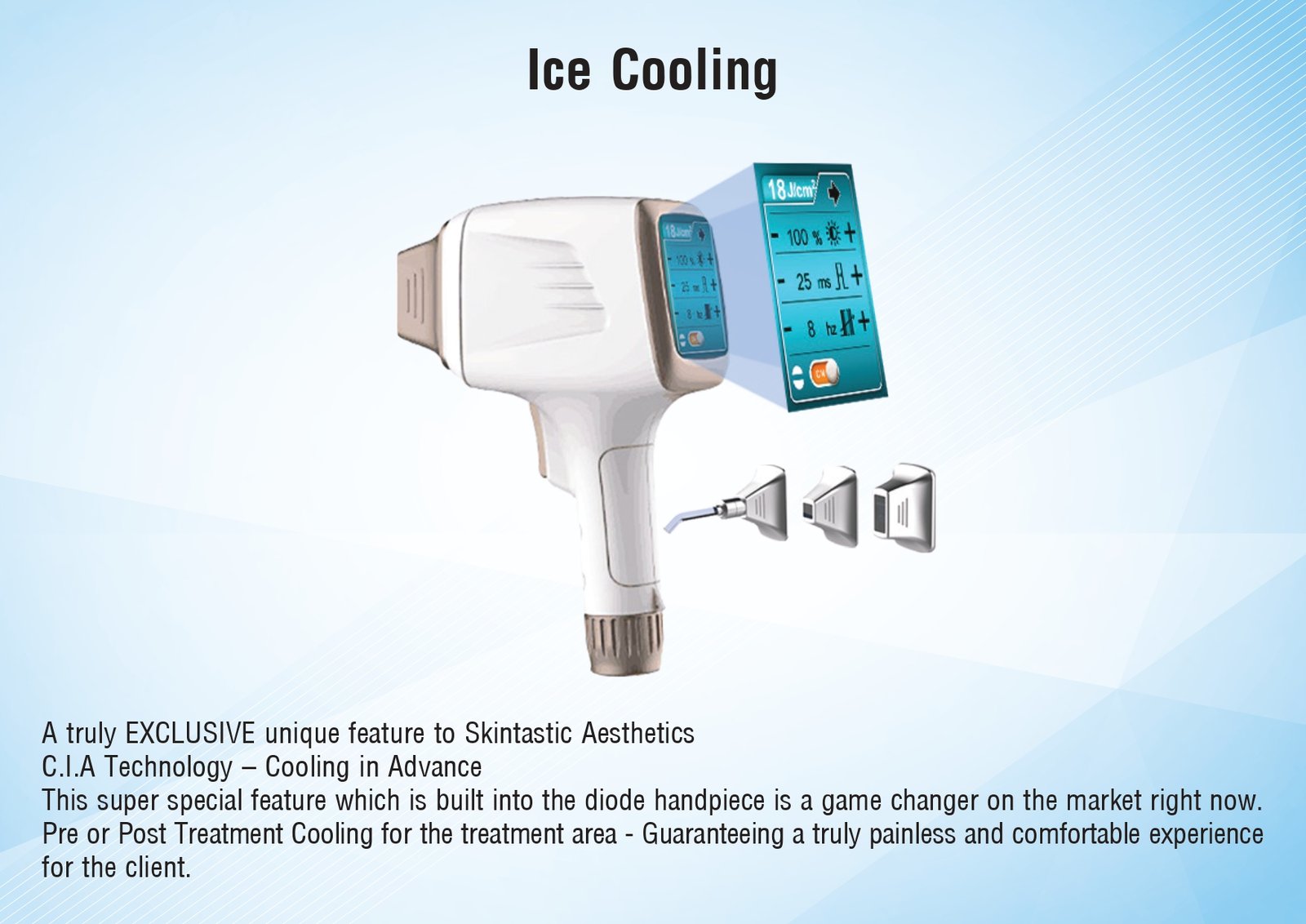

- PT100 sensor in the handpiece holds the sapphire crystal at a constant 4°C, with 360 degree contact cooling

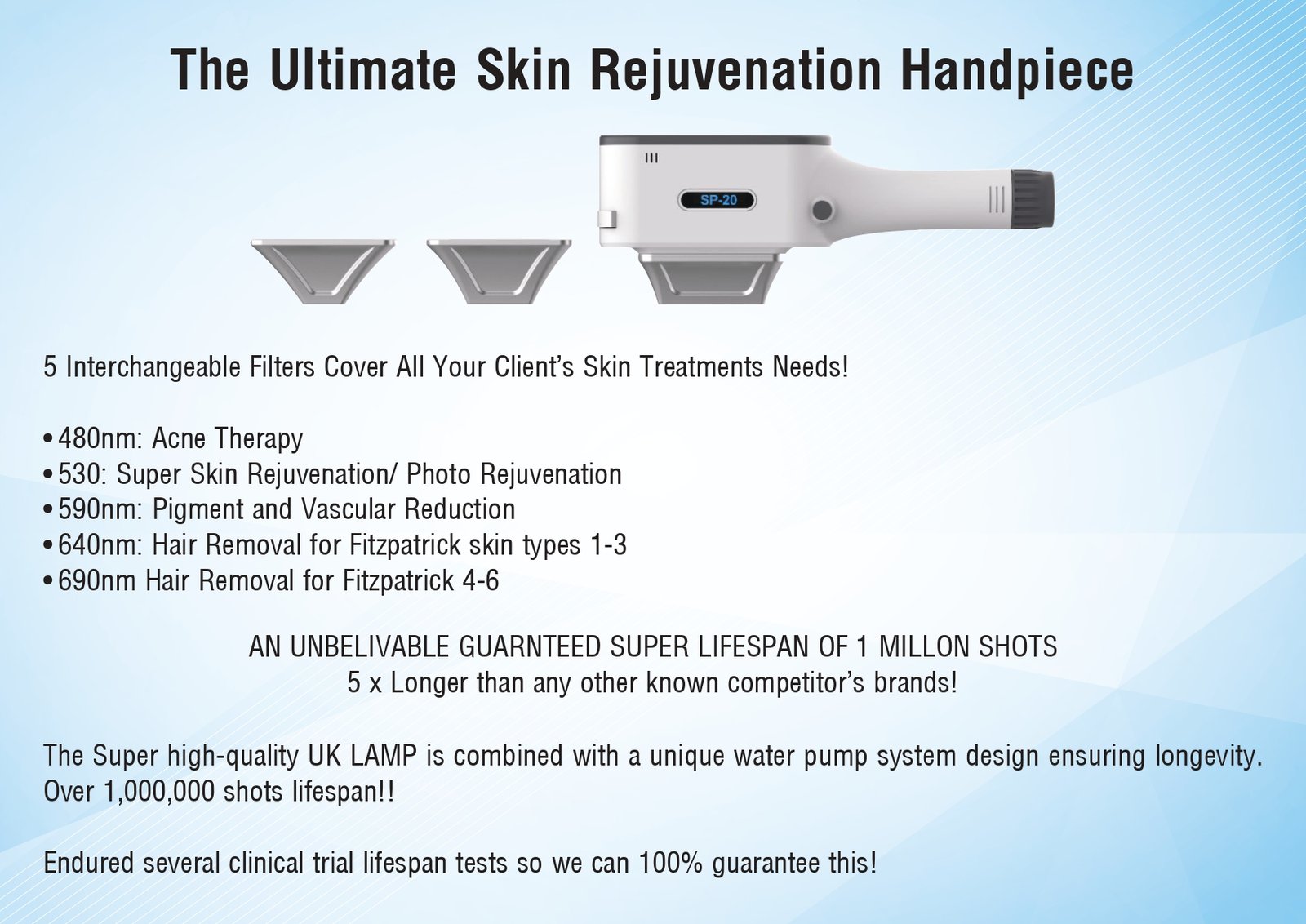

The IPL and SHR side
- 1400W, UK xenon lamp, one million shot guaranteed lifespan

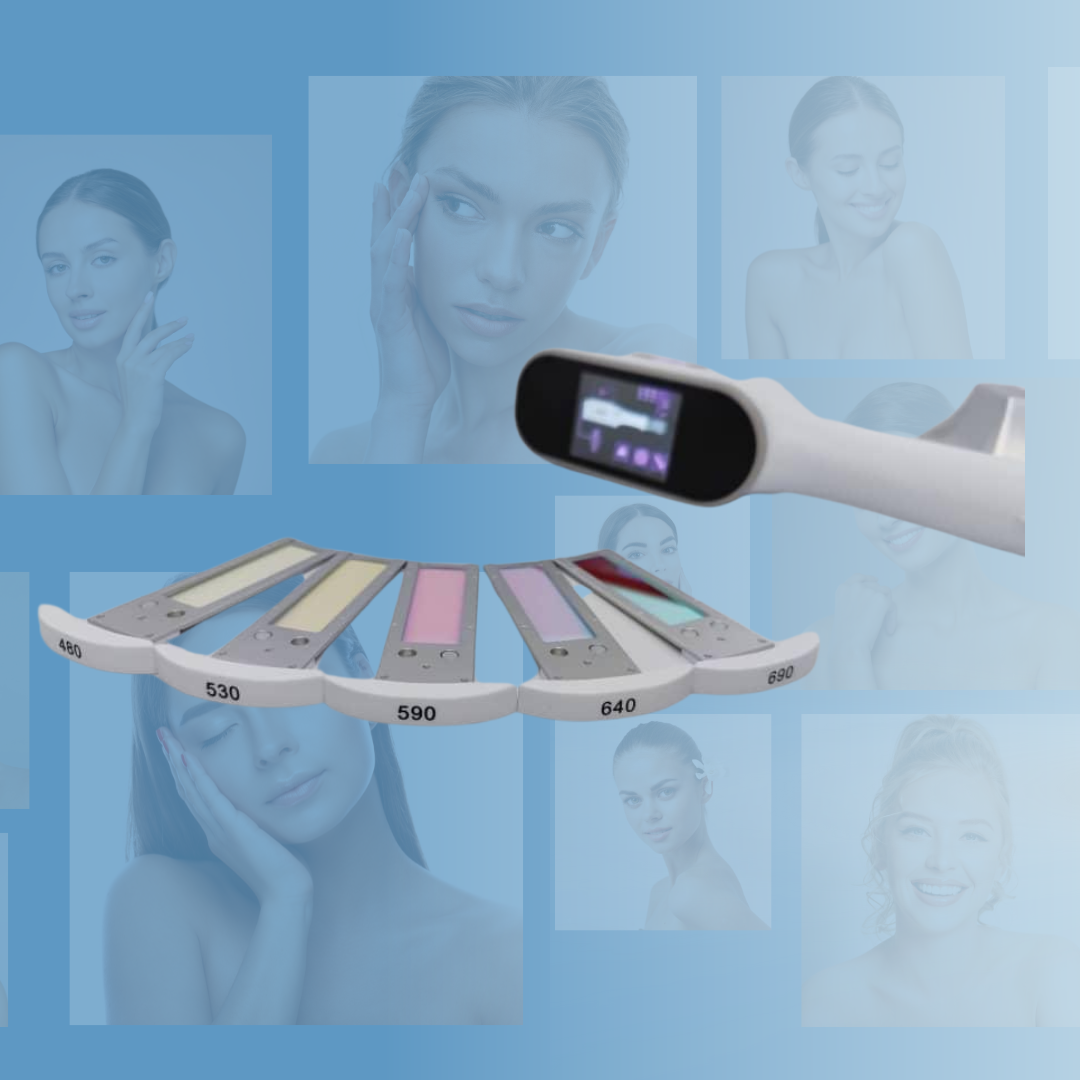

- Five filters: 480nm acne, 530nm vascular and skin rejuvenation, 590nm pigmentation, 640nm hair removal on fair skin, 690nm hair removal on darker skin
- Spot sizes 15 x 60mm and 15 x 35mm standard, 15 x 20mm optional
- IPL 1 to 50 J/cm², SHR 1 to 26 J/cm²
- IPL pulse 1 to 10ms, SHR pulse 1 to 15ms. Pulse frequency 1 to 10Hz
- Pulse delay, IPL 1000 to 300ms, SHR 1 to 30s
- Two working modes, Super mode for large areas and IPL mode for smaller areas such as the face
- Intelligent recognition of all five filters
- Twin 22,000µF capacitors, 44,000µF in total, giving OPT square wave output
- Cooling rated to minus 20 degrees at the head
Machine
- Sapphire crystal, air, closed water circulation, semiconductor and TEC cooling
- 10.4 inch true colour touchscreen, fifteen languages, client record database
- Continuous self diagnostics: water flow, impurity, temperature, filter change, handpiece reset, live voltage and current
- 10 to 12 hours continuous standby working
- 100 to 110V or 230 to 260V, 50 to 60Hz. 36kg net
- Packing dimensions 63 x 57 x 52cm, width by depth by height
- Class 4 laser, BS EN 60825-1
Regulatory standing
Manufacturer Beijing Stelle Laser Technology Co., Ltd, SRN CN-MF-000038245. Class IIa. Basic UDI-DI 697669578ADPL2V6. GMDN 58786. Notified body TÃœV Rheinland LGA Products GmbH 0197, EC Certificate HD 2264988-1 under Directive 93/42/EEC, surveillance audit confirmed 25 January 2024 and continued validity confirmed 12 April 2024 under Regulation (EU) 2023/607. Registered with the MHRA 24 May 2024, application reference 2024052201363378. UK Responsible Person: MedPath Limited, 27 Old Gloucester Street, London WC1N 3AX. Skintastic is the UK importer and distributor. Registration with the MHRA is not accreditation, certification, approval or endorsement.
Included
Engineer delivery, installation and calibration, PAT testing, three days of on site operator training, the applicable Ofqual regulated qualification pathway subject to entry requirements, a start up kit worth £799, protective eyewear, and complimentary shell colour and engraved logo customisation. Eighteen month warranty on the machine, twelve months on the diode bars and lamp.
